HORIZONTAL MEAT SLICER, MODEL FQJ380

HORIZONTAL MEAT SLICER, MODEL FQJ380

FQJ380 adopts new double floating belt conveying design, widely cutting range (the 380mm width × 120mm height). It can meet customers’ requirements for processing different sizes and various shapes of raw materials which is suitable for fresh boneless meat like beef, lamb, pork, chicken, seafood and cooked products. It can be also used for sliced products such as block shape vegetables. Horizontal conveyor style can realize continuous production with other Hiwell equipment.


CONTACT

Features：
1.Suitable for tough products with tendons or cartilage, or vegetables.
2.Safety switch equipped on the cover. Stainless steel and non-metallic materials in conformity with FDA standard.
3.Pneumatical lifting is adopted for compacting the conveyor belt. Easy operation and convenient maintenance.
4.Adjustable cutting thickness; High efficiency and cutting accuracy.
The conveyor belt is driven by drum motor. It is safe, reliable and easy to clean

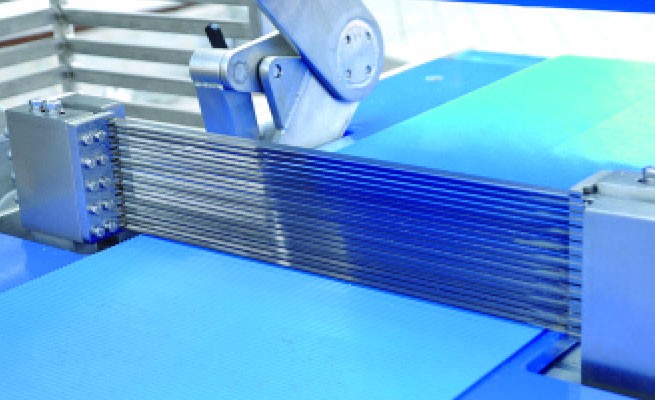

1.Special multi-blades structure design can realize all the blades to achieve best slicing satiation and minimize the slicing error.

2.Pneumatical double-floating compaction conveying system is adopted, which can be adjusted automatically according to different thickness of raw material.

3.The pneumatic system adopts German Festo brand, which is safe and reliable

4.Easy-to-disassemble belts ensure the comprehensive cleaning, CE approved.

MODEL: FQJ380
Raw material temperature: ≥-2℃
Production capacity: 1000kg/h
Power: 28.12kW
Production capacity: About 800-1600kg/h
Belt width: 380mm
Belt speed: 3-15m/min(adjustable)
Cutting thickness: ≥4mm
Input height: 1000±50mm
Output height: 1000±50mm
Power: 2.0kW
Overall dimension: 2180×1155×1480mm
